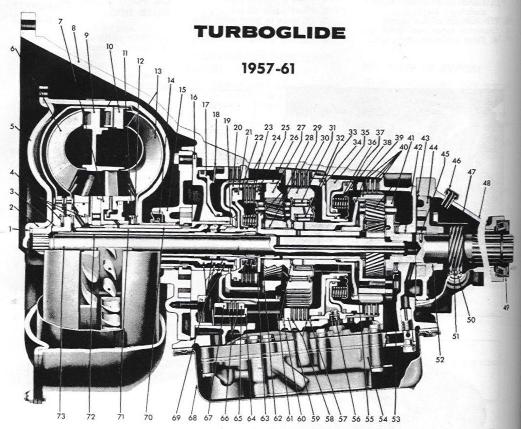

Used 1957-61 only in  Chevrolets.

This was an hydraulically controlled  transmission.

Gear Ratios:
2.67:1 1st gear
1.63:1 2nd gear
1.00:1 3rd gear
???????????????? reverse


Pan and gasket

(click on picture to enlarge)

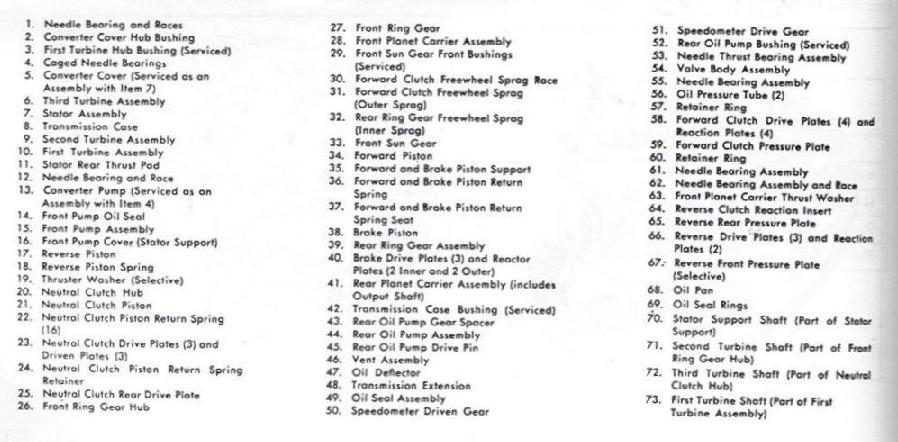

Click here to go to parts identification page

TuboGlide Parts Listed for Sale
