AX4N

A.K.A. 4F50N

Was used 1995-up  in Taurus, Sable, Lincoln.

This is a computer controlled front wheel drive overdrive transmission.

Bottom cooler line is the cooler return line.

Band adjustments:
Coast = not adjustable
1-2 = not adjustable
Overdrive = not adjustable

Gear Ratios:
2.77:1 1st gear
1.54:1 2nd gear
1.00:1 3rd gear
0.69:1 4th gear
2.263:1 reverse

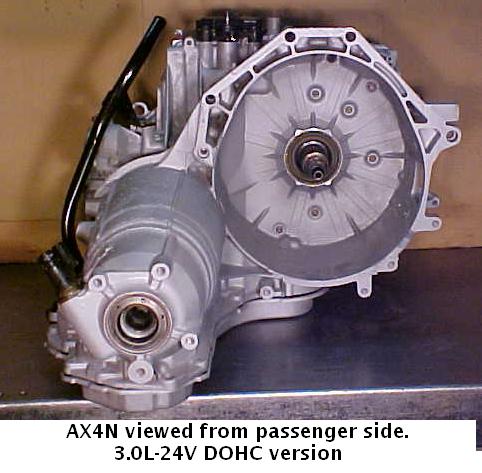

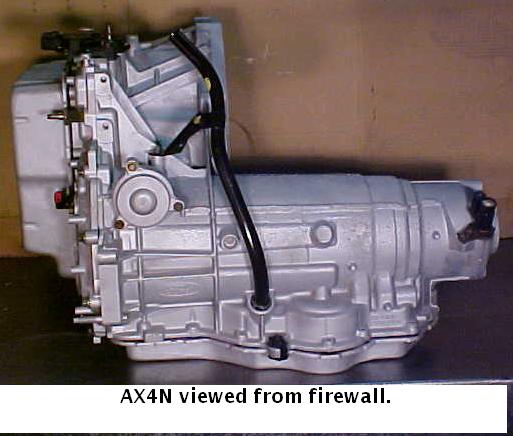

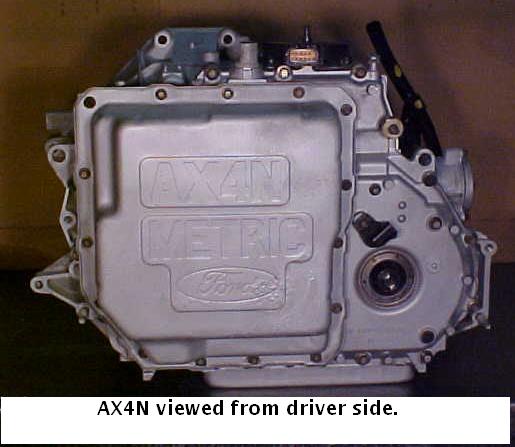

Transmission

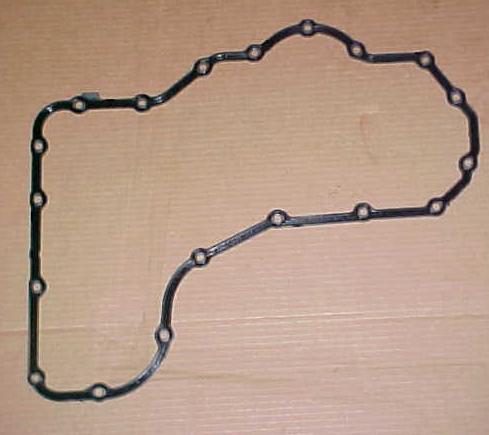

Pan gasket
(click on picture to enlarge)
