ATX

Was used 1981-90  in many Ford products.  It was used in Tempo and Topaz thru the end of their production.  There were MANY variations over the years and MANY parts do NOT interchange from year to year or model to model.

This was an hydraulically controlled front wheel drive  transmission.

Cooler line nearest pump is the cooler return line.

Band adjustment:
Front = not adjustable
Reverse = Not used

Gear Ratios:
2.84:1 1st gear
1.54:1 2nd gear
1.00:1 3rd gear
????????? reverse

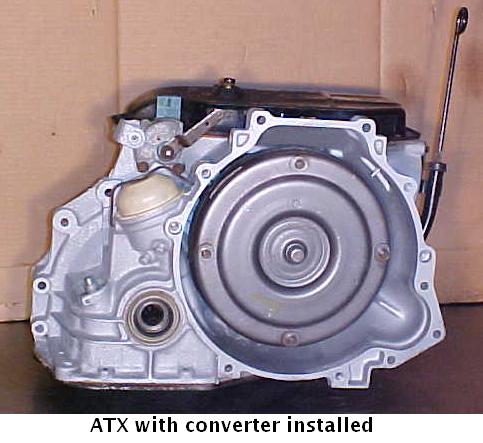

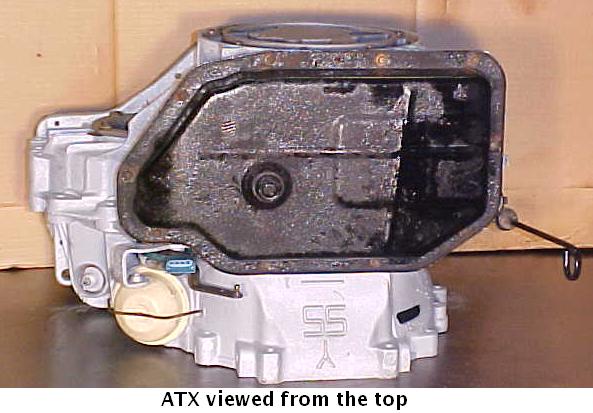

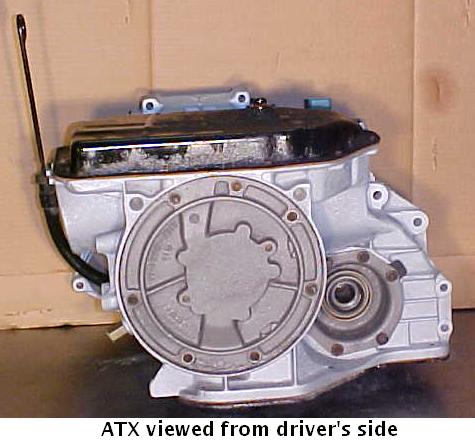

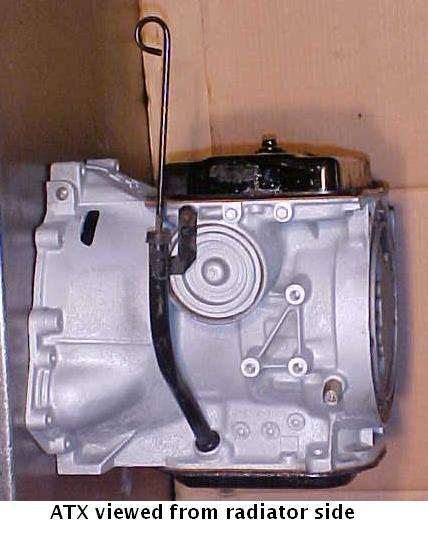

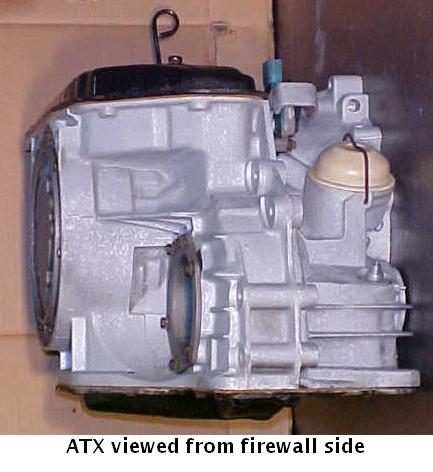

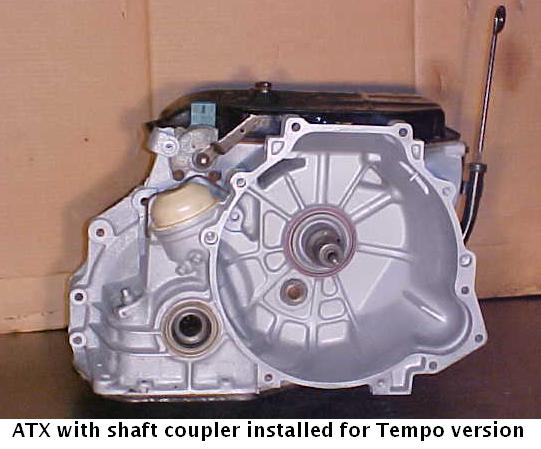

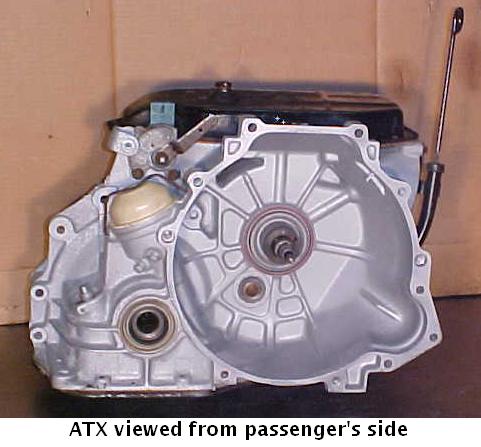

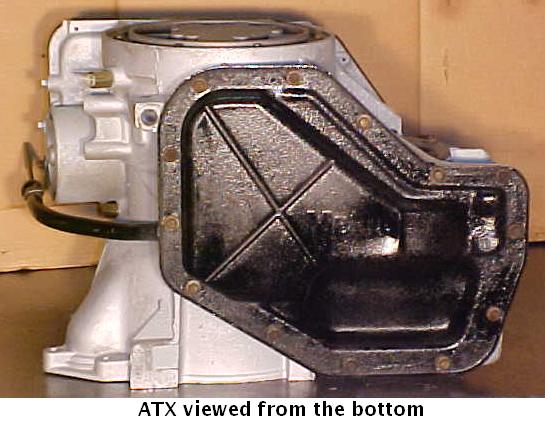

Transmission

(click on picture to enlarge)

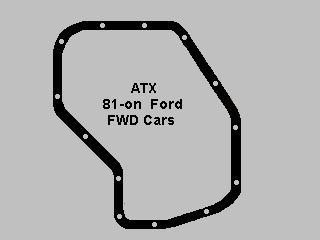

Pan and gasket

ATX parts listed for sale
