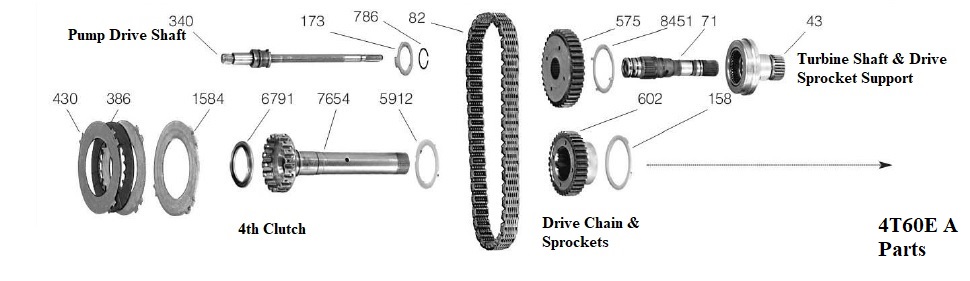

CHAIN &
SPROCKETS, 4th CLUTCH, PUMP DRIVE SHAFT, TURBINE Shaft, and DRIVE
SPROCKET SUPPORT
|
 |

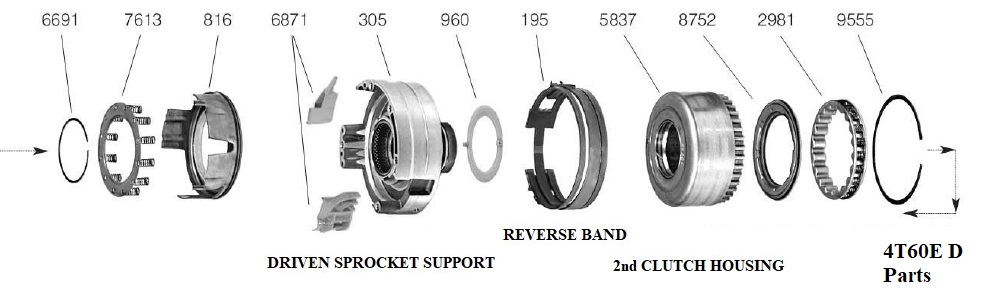

DRIVEN SPROCKET
SUPPORT, REVERSE BAND, & 2nd CLUTCH HOUSING |
 |

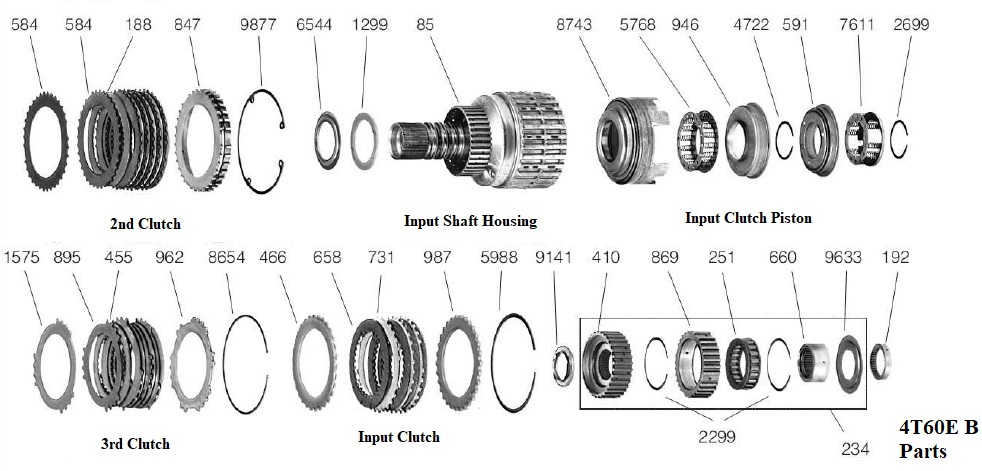

2nd CLUTCH, INPUT
SHAFT HOUSING, INPUT CLUTCH PISTON, 3rd CLUTCH, & INPUT CLUTCH |
 |

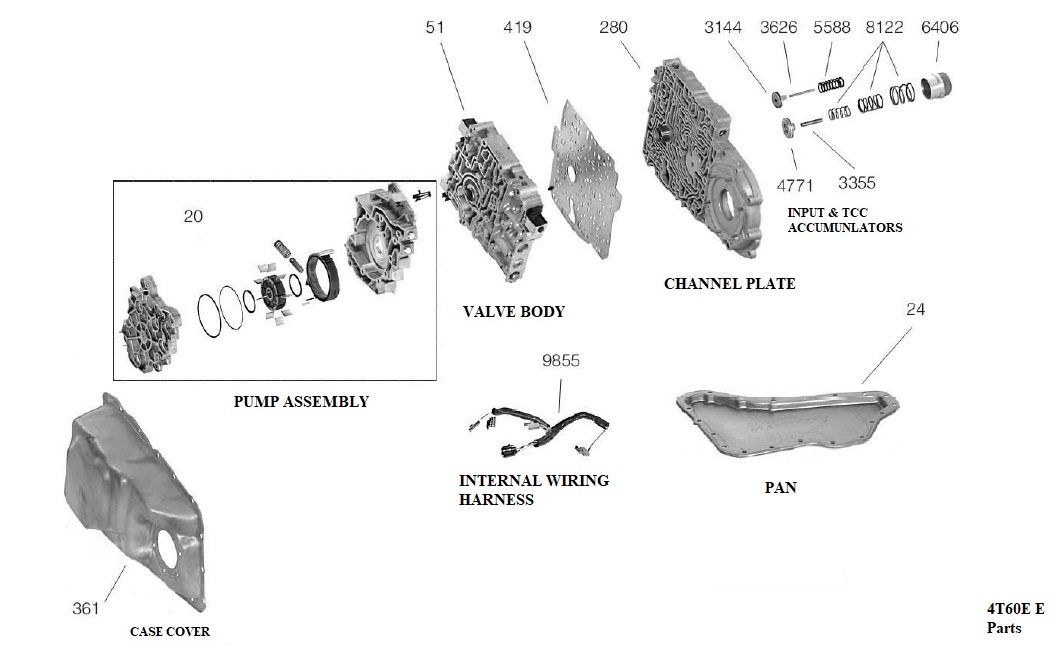

CASE COVER,
PUMP ASSEMBLY, INTERNAL WIRING HARNESS, VALVE BODY, CHANNEL PLATE, &
INPUT & TCC ACCUMULATORS, and PAN |
 |

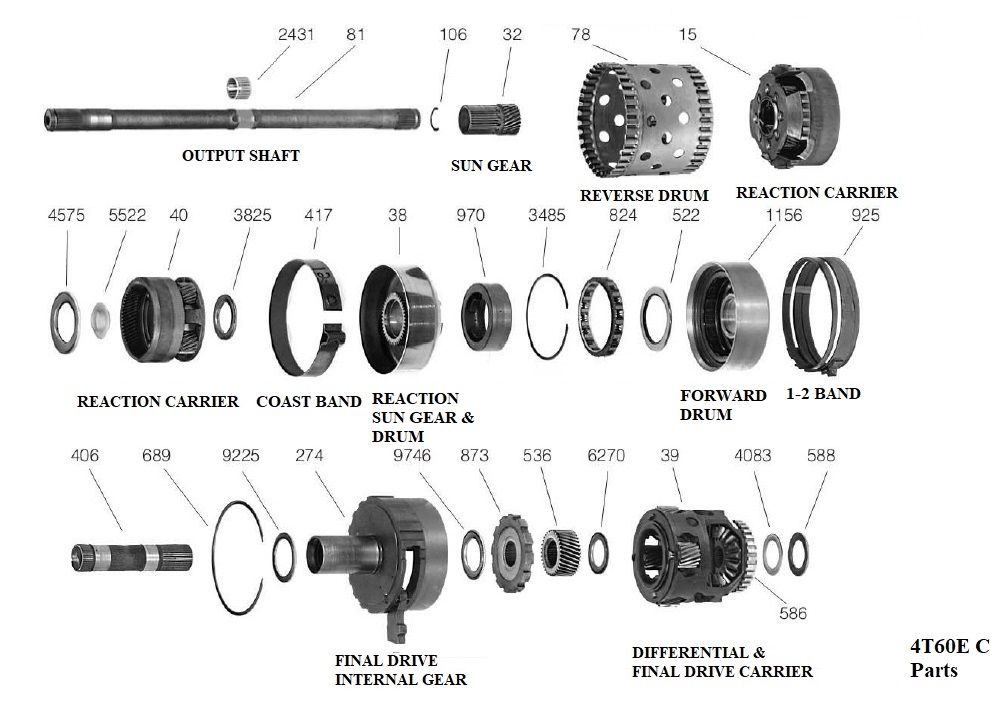

OUTPUT SHAFT, SUN
GEAR, REVERSE DRUM, INPUT CARRIER, REACTION CARRIER, COAST BAND,
REACTION SUN GEAR & DRUM, FORWARD DRUM, 1-2 BAND, COAST
DRUM, FINAL DRIVE INTERNAL GEAR, & DIFFERENTIAL and FINAL DRIVE
CARRIER |
 |

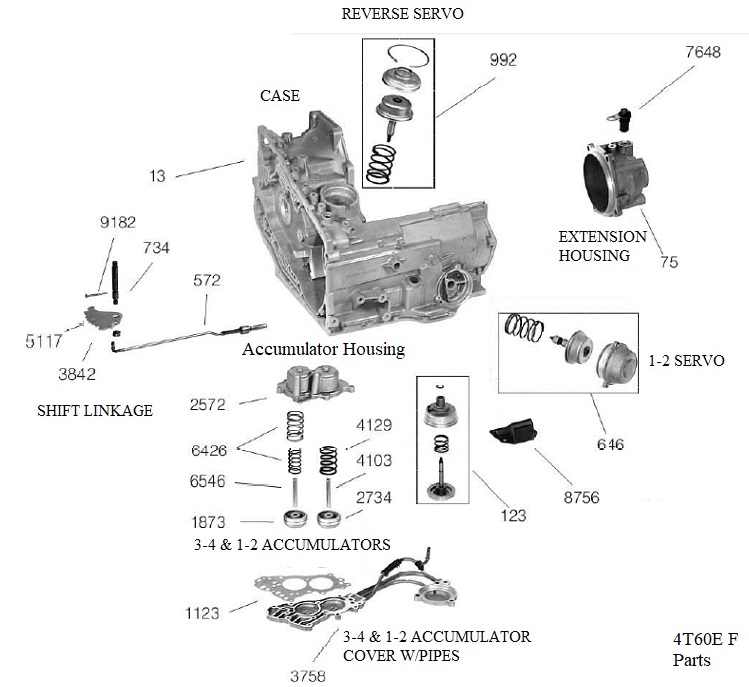

SHIFT LINKAGE,
ACCUMULATOR HOUSING, CASE, REVERSE SERVO, EXTENSION HOUSING 1-2 SERVO,
1-2 & 3-4 ACCUMULATORS, and 1-2 & 3-4 ACCUMULATOR COVER W/TUBES, |
| |
CLICK ON A PICTURE TO ENLARGE IT |
|
4T60E |
