Ford G-4EAT transmission

G-4EAT

Used in 1989-UP Probe. Also used in 1987-up various Mazda models as G4A-EL/HL.

Known as GF-4EAT from 1993-up because of MAJOR revisions.

This is a computer controlled front wheel drive transmission.

Cooler line nearest pump is the cooler return line.

Band adjustments:
Front = 2 turns
Reverse = not used

Gear Ratios:
2.80:1 1st gear
1.54:1 2nd gear
1.00:1 3rd gear
.70:1 4th gear
2.33:1 reverse

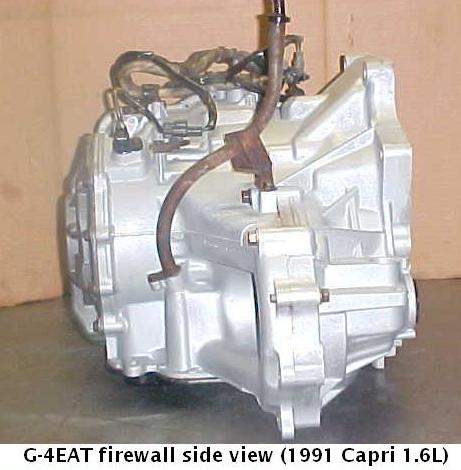

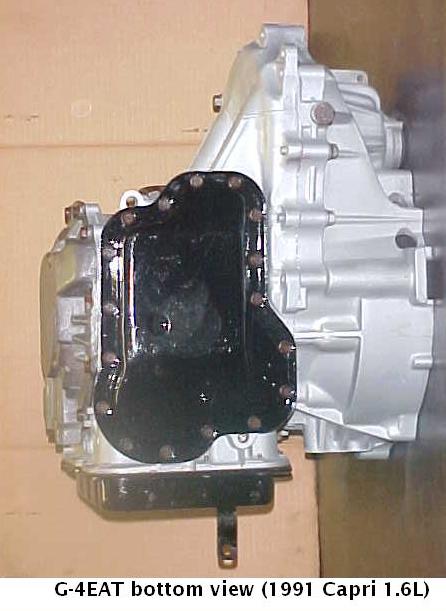

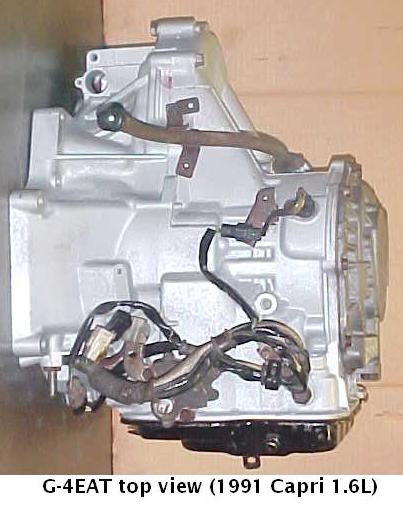

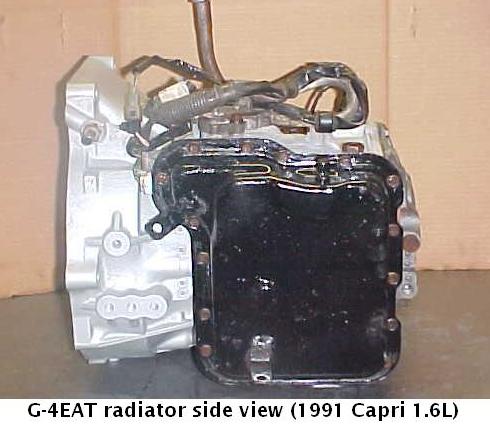

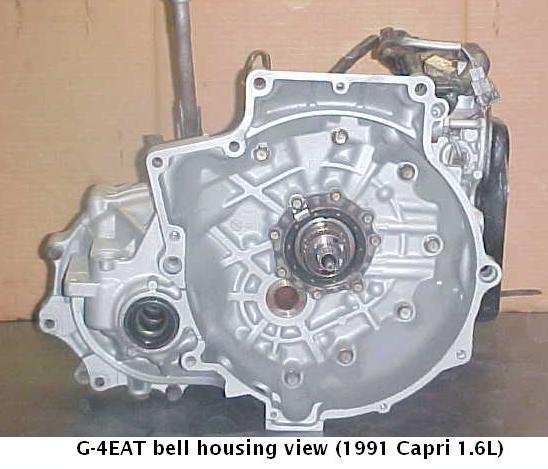

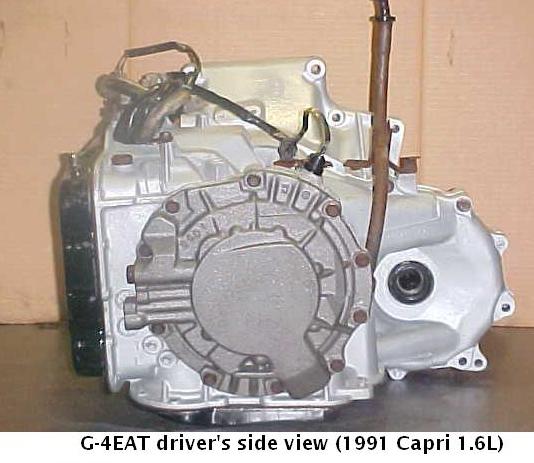

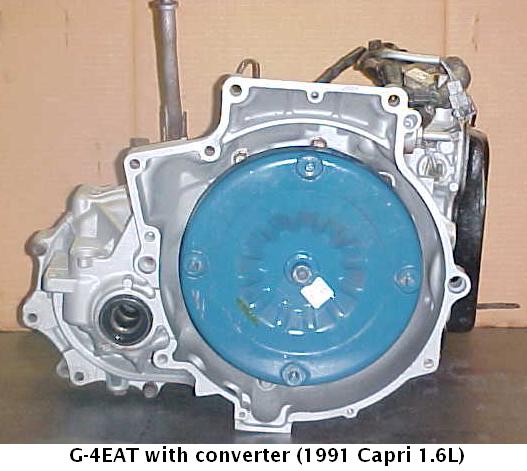

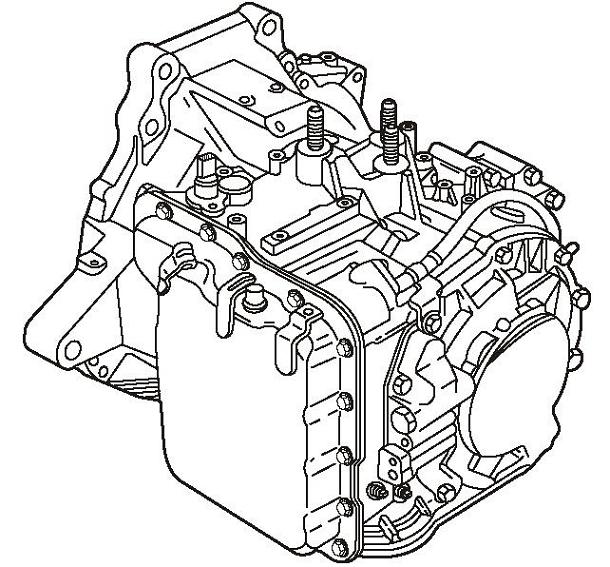

Transmission

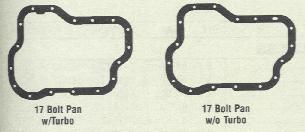

Pan and gasket

(click on picture to enlarge)
